Lighting Solutions For Vertical Farms

Vertical farm maximizes the grow space by the means of stacked verticals and column verticals, therefore providing more space for plants and increasing profits. The Mars Hydro FC and FC-E series are equipped with optimal passive cooling heat sinks that run cool and were designed as a thin shape to make sure they can be put closer to crops. The Mars Hydro FC and FC-E series also generate uniform PPFD so vertical farmers can get quality and consistent harvests, cycle after cycle.

INDOOR LED GROW LIGHTS SPECIFICATIONS

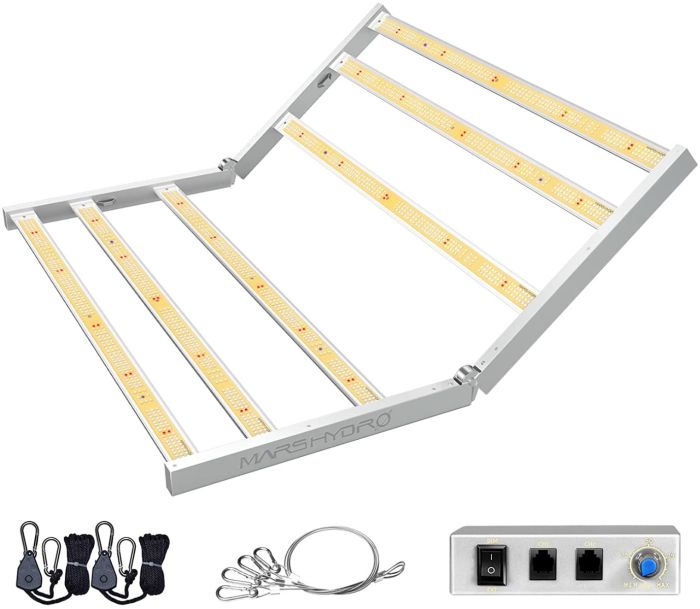

FC6500 only requires 5-8’’ clearance above canopy but provides an average PPE 2.8uoml/j with working temperature below 35℃ over a 4’x4’ area in racks, shelves, etc, thus promoting plant production for vegetable, herb, and ornamental crops.

Draw Power

680w

Coverage

4'x4'

Light Output PPF

1870umol/S

Efficacy

2.8μmol/j

Chips

2688pcs Samsung LM301B

Spectrum

650-665nm, 800-3000K, 4800-5000K

Power Supply

Mars Hydro

Certification

ETL,CE,UKCA,RoHS

Size

1130*1120*105.5MM
12.8kg





AC VOLTAGE120v240v277v
AC Current5.651A2.825A2.456A
AC Power682W661W657W
Power Factor0.99330.97410.9648



View more

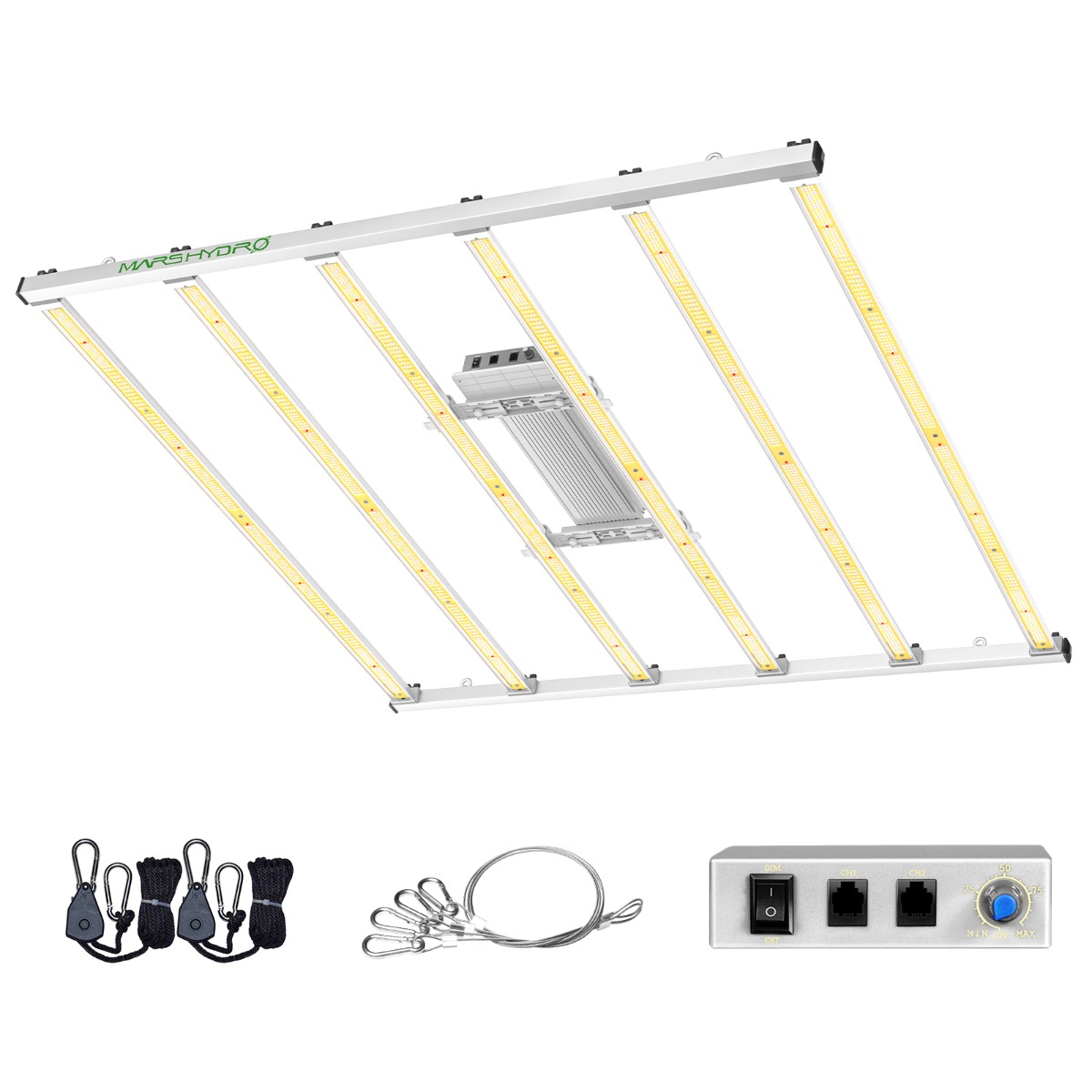

FC-E6500 only requires 5-8’’ clearance above canopy but provides an average PPE 2.7uoml/j with working temperature below 35℃ over a 4’x4’ area in racks, shelves, etc. Besides, with detachable light bars, you’re able to design the light distribution according to your own demands.

Draw Power

680w

Coverage

4'x4'

Light Output PPF

1822umol/S

Efficacy

2.7μmol/j

Chips

3978pcs BridgeLux

Spectrum

650-665nm, 800-3000K, 4800-5000K

Power Supply

Mars Hydro

Certification

ETL,CE,UKCA,RoHS

Size

1151*1151*79MM

10.72kg





AC VOLTAGE120v240v277v
AC Current5.647A2.784A2.383A
AC Power681W670W662W
Power Factor0.99320.97350.9638



View more

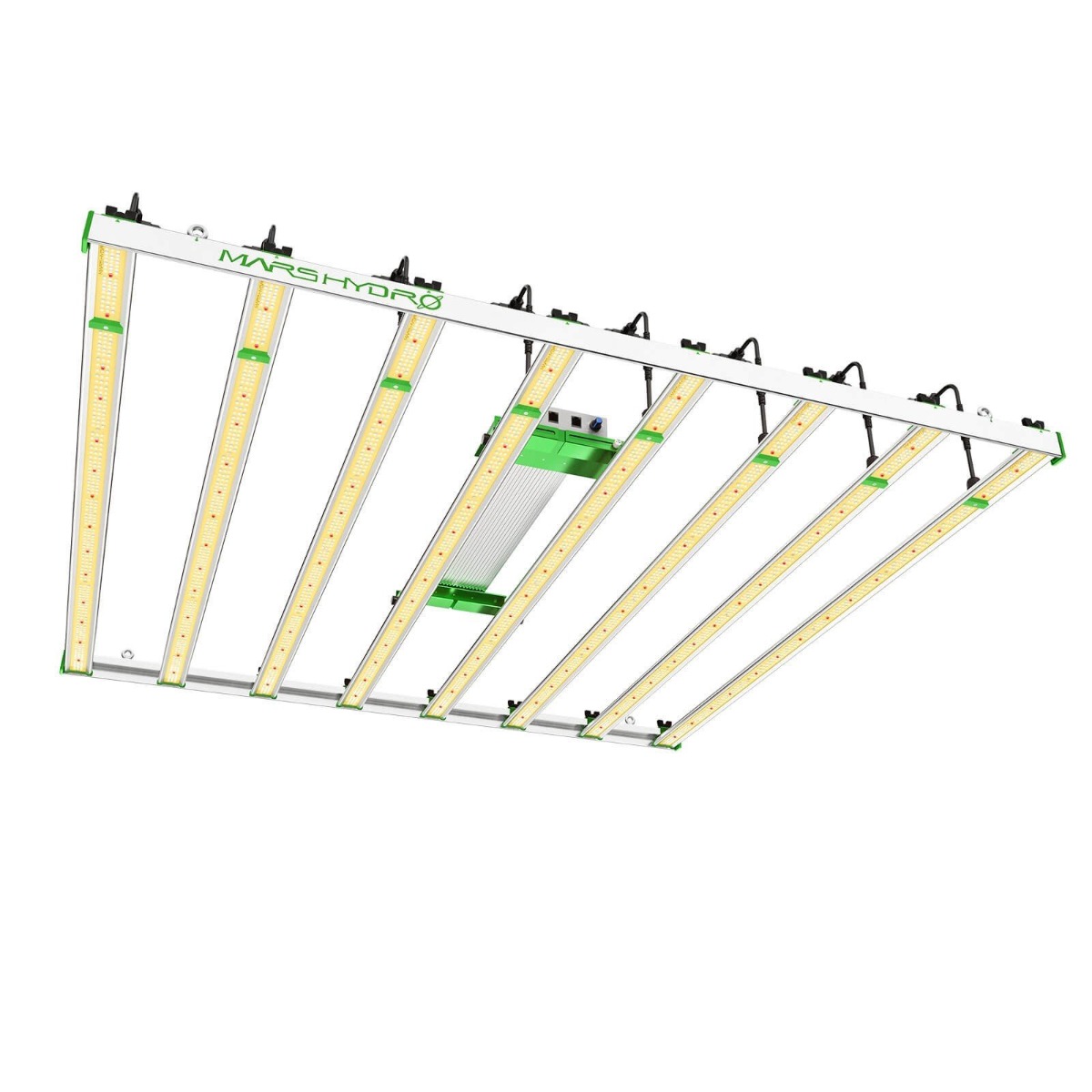

FC 8000 is born for commercial cultivations applying supplemental CO2, supplying uniform PPFD averaging 1500μmol/m²/s, sufficient to activate 100% photosynthesis and obtain maximum yield at different CO2 concentrations.

Draw Power

800w

Coverage

4'x4'

Light Output PPF

2128umol/S

Efficacy

2.8μmol/j

Chips

2968pcs Samsung LM301B

Spectrum

660-665nm, 2800-3000K, 4800-5000K

Power Supply

Mars Hydro

Certification

DLC,ETL,CE,UKCA,RoHS

Size

1151*1151*75mm
12kg





AC VOLTAGE120v240v277v
AC Current6.635A3.266A2.847A
AC Power804W773W775W
Power Factor0.99880.98640.9817



View more

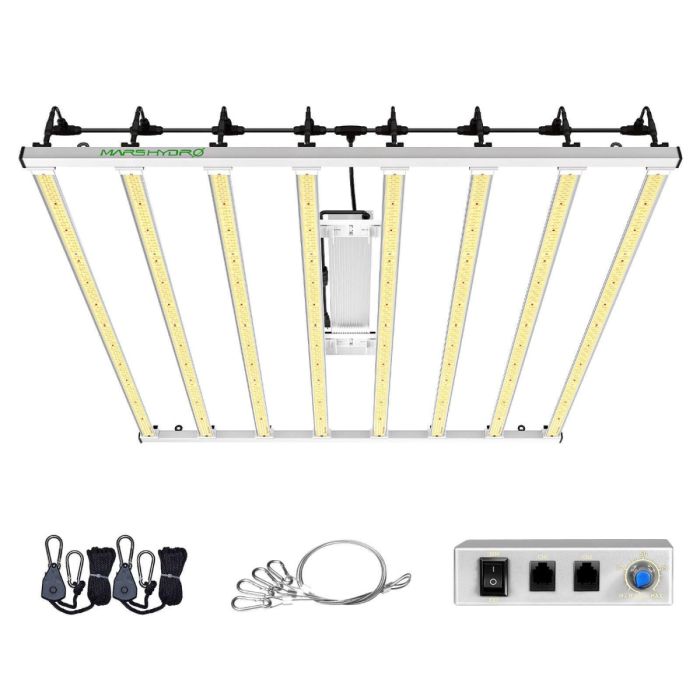

FC-E 8000 an affordable alternative lighting solution for commercial cultivation in supplemental CO2 applications, delivering uniform PPFD around 1500μmol/m²/s at 10inch height, standard commercially-viable LED grow lights for all indoor horticulture adding extra CO2.

Draw Power

800w

Coverage

4'x4'

Light Output PPF

2079umol/S

Efficacy

2.7μmol/j

Chips

3928pcs BridgeLux

Spectrum

660-665nm, 2800-3000K, 4800-5000K

Power Supply

Mars Hydro

Certification

ETL,CE,UKCA,RoHS

Size

1162*1151*81mm
12kg





AC VOLTAGE120v240v277v
AC Current6.619A3.261A2.842A
AC Power802W775W777W
Power Factor0.99890.99110.9864



View more
